Powerful data for your car

RaceCapture is a powerful lap timer, data logger and telemetry system for your race or street car.

RaceCapture is Autosport Labs’ premier data logger designed for track day enthusiasts. Analyze your lap times, record speed, acceleration, yaw and engine data. Display predicted lap time and sensor values on an Android dash in-car. Send data in real-time to Podium to have your friends watch you race, live! Compare and share your lap data with friends online. Learn how to drive faster now with predictive lap timing, not after you finish your sessions.

Predictive lap times and more with the RaceCapture app

The free Race Capture app provides a fast, real-time view of your race car’s data, including predictive lap times, sensor alerts and a customizable dashboard. Try it today: Download from the Google Play Store or the Amazon App Store!

RC_app_dash_screenshot

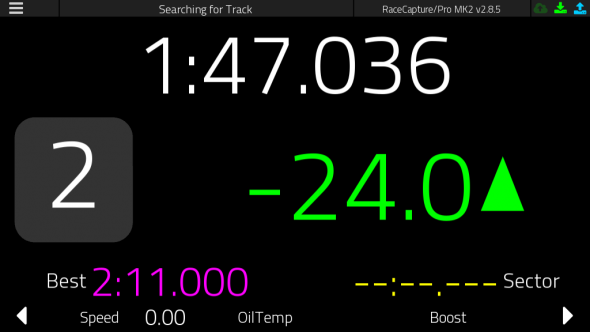

RC_app_bestlap

RC_app_racetracks

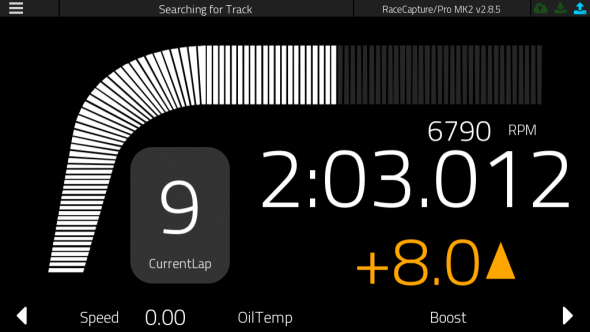

RC_app_tacho_view



Log

  • Predictive lap timing with the built-in high performance GPS
  • 3 axis accelerometer to measure G-Forces in 3D
  • 3 axis Gyro to measure Yaw, Pitch and Roll
  • CAN bus or OBDII data – connect directly to 2008+ CAN/OBD-II ports or older cars with the legacy OBDII adapter
  • All in a tiny, easy to install case

What’s in the Box

  • RaceCapture
  • OBDII cable

RaceCapture requires a phone or tablet for displaying and recording data.

Options

Legacy OBDII Adapter

Got a car made before 2008? No problem! Select the ‘Include Legacy OBDII Adapter’ option to enable RaceCapture to connect to your car and record additional data like engine temperature and more! (Sensor support varies by make and model)

Specifications

Inertial Motion Unit
Accelerometer Channels 3 (X/Y/Z) (2G, 4G capable)
Gyro 3 (Yaw/Pitch/Roll) (1000 degrees/sec)
Magnetic compass 1 (Bearing) (device capable of 3) (compass available in 2.9.x firmware)
GPS
GPS Type Internal active antenna
GPS Sample rates 5/10/25/50Hz capable (10Hz recommended, 50Hz requires optimal conditions)
GPS accuracy 2.5M CEP
Configuration Capacity
Auto-detect track database unlimited
Sectors per track 20
Channel support 50
Physical
Dimensions 3.5″ (w) x 2″ (h) x 1.5″ (tall) / 9x5x3.8 m(est)
Weight 5oz / 141gm (est)
  • Race Capture Datenlogger + Laptimer + Live Telemetrie Daten an die Box
  • Tablet / Handy App für Android und IOS: kann als Display, zum Datenloggen und zum Streamen ins Internet verwendet werden
  • Verbindungen und Sensoren: WiFi für App, USB zur Konfiguration, integriertes GPS (50Hz) sowie 6-Achs G-Sensor und Gyro-Sensor, OBD Anschluss und CAN Bus Verbindung möglich,
  • Preis: ab € 274,- excl UST (329,- inkl UST)
  • Vergleichstabelle der verschiedenen Versionen: https://tinyurl.com/RaceCapture-Versionen
